Adding an Ellipse

Applies to: Plus Pro Architect

To add an ellipse to the Plan view:

1.   Click the Plan tab to switch to the Plan view.

2.   From the Plan Detail tab, click Add Ellipse.

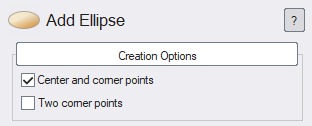

3.   Click the desired creation method shown below.

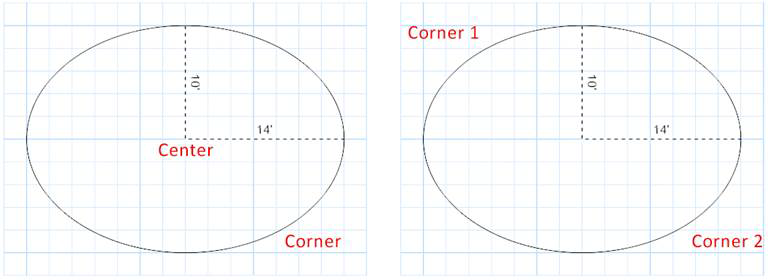

4.   Click to place the points of the ellipse depending on the creation method.



    The steps above are only used when first adding the ellipse. Once the ellipse is added to your design, it can be edited as needed. See Editing Points for more information.

    All plan detail objects can only be added and viewed in the Plan view, unlike other objects that are compatible with all views. See Adding Plan Detail for more information.

    The shape of the ellipse will be filled by default. To show just the ellipse’s outline, set Transparency to 100.
